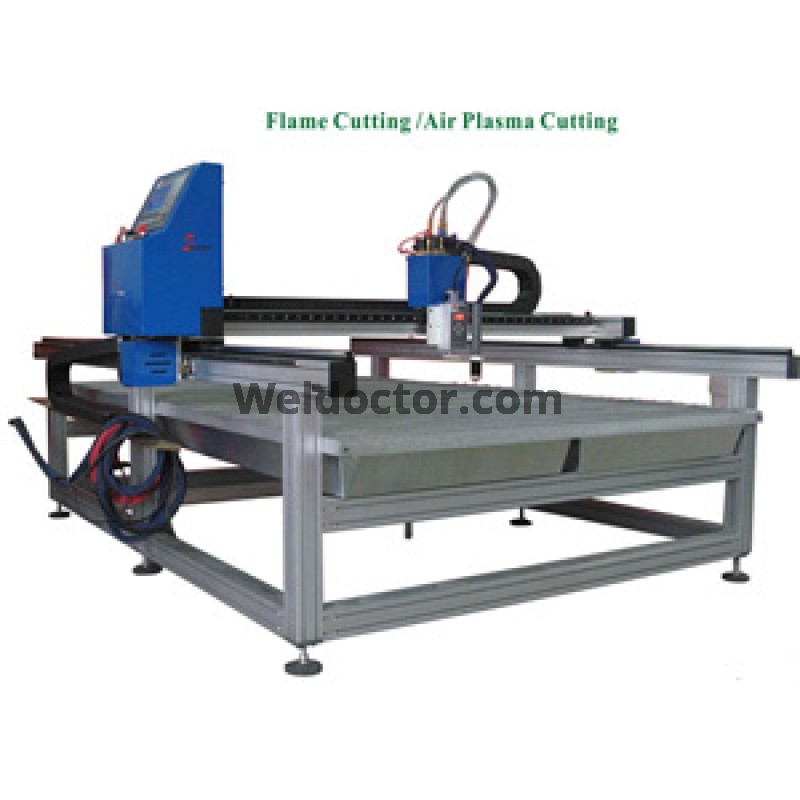

1.Adopt advanced professional industrial control technology,LCD display with 7 inches's high resolution ration lattice.Its cutting method and performance,just as the gantry type cutting machine,can cut the arbitrary and complicated plane figure.It reduces the second process and the producing cost,improving material utilization and the labor productivity;

2.With flame cutting and plasma cutting controlled software operation transforming,transferring cutting mode is very easy;

3.Chinese and English menu visual and easy to learn;

4.Used alternative dialogue type programming software,transfer the spares' figure and nesting which drawing by AutoCAD,automatically to G code which is needed by the cutting,but no need the human programme;

5.Support USB connection,making the document transferring conveniently and software upgrade;

6.Perfect offline function,quick and exact setting starting point;

7.High detailed Stepping Motor controlled driver makes the equipment move stably with low noise,improving the procure quality.





Parameter	Unit	CSST 1600X2600
Rated primary voltage	V	1 phase 220±15%
Power Source Frequency	Hz	50-60
Rated Input	W	450
Effective Cutting range	-	1600X2600
Cutting Thickness	mm/min	5-200
Moving Speed	mm/min	0-5000
Flame cutting speed	mm/min	0-600
Drive type	-	bilateral drive
Weight	kg	226
Fuel Gas Pressure	Map	max£0.1
Oxygen Pressure	Map	max£0.8
Applied Fuel Gas type	-	Acexylene,Propane
